Yesterday I was reading the source code for the scikit-learn function that implements Hierachical clustering with Ward linkage, _agglomerative.py. The python function ward_tree() uses functions heapify(), heappop(), heappush(). The heapify docs say that it converts a python list (~ C++ STL vector) to a min-heap. Is there an equivalent in R?

In theory

The basic data structures in R are “vectors” which are in fact more like C++ STL arrays (fixed size). So in R we could have a large heap that reduces in size (with some unused elements). If we had a small heap, and we wanted to increase its size, we could use the same trick that python uses to enable its “lists” to support the append operation (allocate a new array double the size and have some unused elements).

Software

In C++ STL there is make_heap() which works on any random access iterator (vector or array). The heap is also used in the priority_queue data structure which I have used to implement efficient binary segmentation in binsegRcpp/src/binseg.cpp.

Of course we can call C++ from R or Python. But can we call an R function like make_heap() in C++ or heapify() in python? There was a datastructures CRAN package, now only on github:

remotes::install_github("dirmeier/datastructures")

## Using GitHub PAT from the git credential store.

## Skipping install of 'datastructures' from a github remote, the SHA1 (c69faa25) has not changed since last install.
##   Use `force = TRUE` to force installation

For the application to hierarchical clustering, we want efficient minimization of numeric distances, so we create a heap with numeric keys below.

num_heap <- datastructures::fibonacci_heap("numeric")
datastructures::size(num_heap)

## [1] 0

Above we see that it starts empty (size 0). Below we insert five simulated distances as keys.

set.seed(1)
(dist.vec <- rnorm(5))

## [1] -0.6264538  0.1836433 -0.8356286  1.5952808  0.3295078

datastructures::insert(num_heap, dist.vec, 1:5)

## An object of class fibonacci_heap<numeric, SEXP>
##
## Peek: -0.835629 -> integer, ...

datastructures::size(num_heap)

## [1] 5

Above we see the size has increased to 5. Below we pop one item from the heap.

datastructures::pop(num_heap)

## $`-0.835629`
## [1] 3

datastructures::size(num_heap)

## [1] 4

Above we see that it popped the smallest distance, and the new size is 4. Below we adapt these methods to an atime performance comparison.

library(data.table)
a_result <- atime::atime(
  setup={
    set.seed(1)
    keys <- rnorm(N)
    values <- 1:N
  },
  data.frame={
    df <- data.frame(keys, values)
    out <- integer(N)
    for(i in 1:N){
      min.row <- which.min(df$keys)
      df$keys[min.row] <- NA
      out[[i]] <- df$values[min.row]
    }
    out
  },
  seconds=1,
  result=TRUE,
  heap={
    num_heap <- datastructures::fibonacci_heap("numeric")
    datastructures::insert(num_heap, keys, values)
    out <- integer(N)
    for(i in 1:N){
      out[[i]] <- datastructures::pop(num_heap)[[1]]
    }
    out
  })

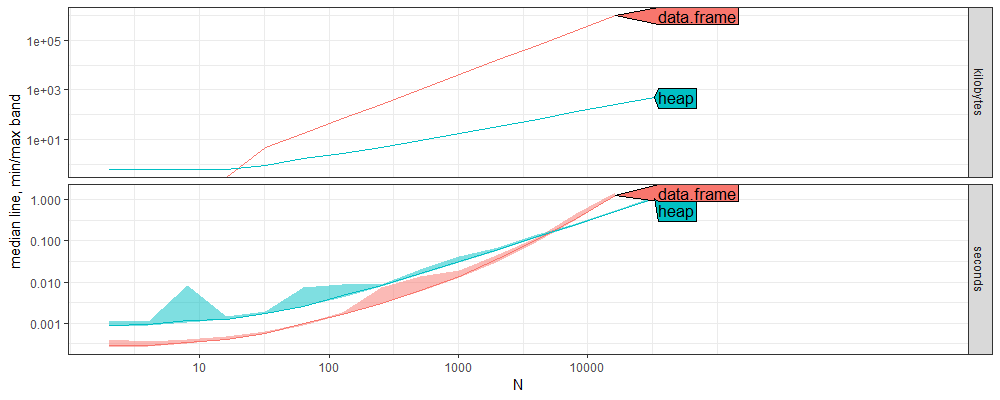

plot(a_result)

## Warning in ggplot2::scale_y_log10("median line, min/max band"): log-10 transformation introduced infinite values.
## log-10 transformation introduced infinite values.
## log-10 transformation introduced infinite values.

plot of chunk atime-result

Above we see that

  • for small data sizes, the linear search with a data frame is faster than the heap pop.
  • for large data sizes, the heap pop is faster than the linear search with the data frame.
  • the asymptotic time and memory usage (slope on the right) is smaller for heap, which indicates a smaller big-O complexity class.

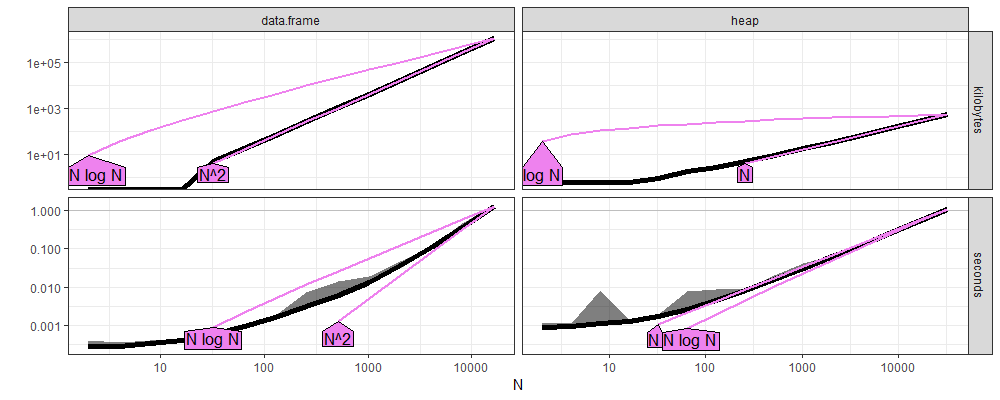

Below we plot reference lines to estimate the big-O classes.

a_refs <- atime::references_best(a_result)
plot(a_refs)

## Warning in ggplot2::scale_y_log10(""): log-10 transformation introduced infinite values.

plot of chunk atime-refs

The plot above shows that

  • data.frame is quadratic O(N^2) time and memory.
  • heap is log-linear O(N log N) time and linear O(N) memory.

These are the expected results from using a heap versus a vector.

Conclusions

We have shown that there is an R package datastructures which implements the heap, and has expected asymptotic time/space complexity.
